Database Schema

FluentBooking stores all data in custom WordPress tables prefixed with fcal_. The schema below is parsed directly from the CREATE TABLE statements inside database/Migrations/, so the columns, types, and defaults reflect what is installed at activation.

Tables

Table	Model	Columns	Indexes
fcal_bookings	Booking	42	8
fcal_calendars	Calendar	19	6
fcal_calendar_events	CalendarSlot	23	5
fcal_meta	Availability	7	3
fcal_booking_activity	BookingActivity	10	2
fcal_booking_hosts	BookingHost	6	3
fcal_booking_meta	BookingMeta	6	2
fcal_meta	Meta	7	3
fcal_orders	Order	27	3
fcal_order_items	OrderItems	12	0
fcal_transactions	Transactions	17	4

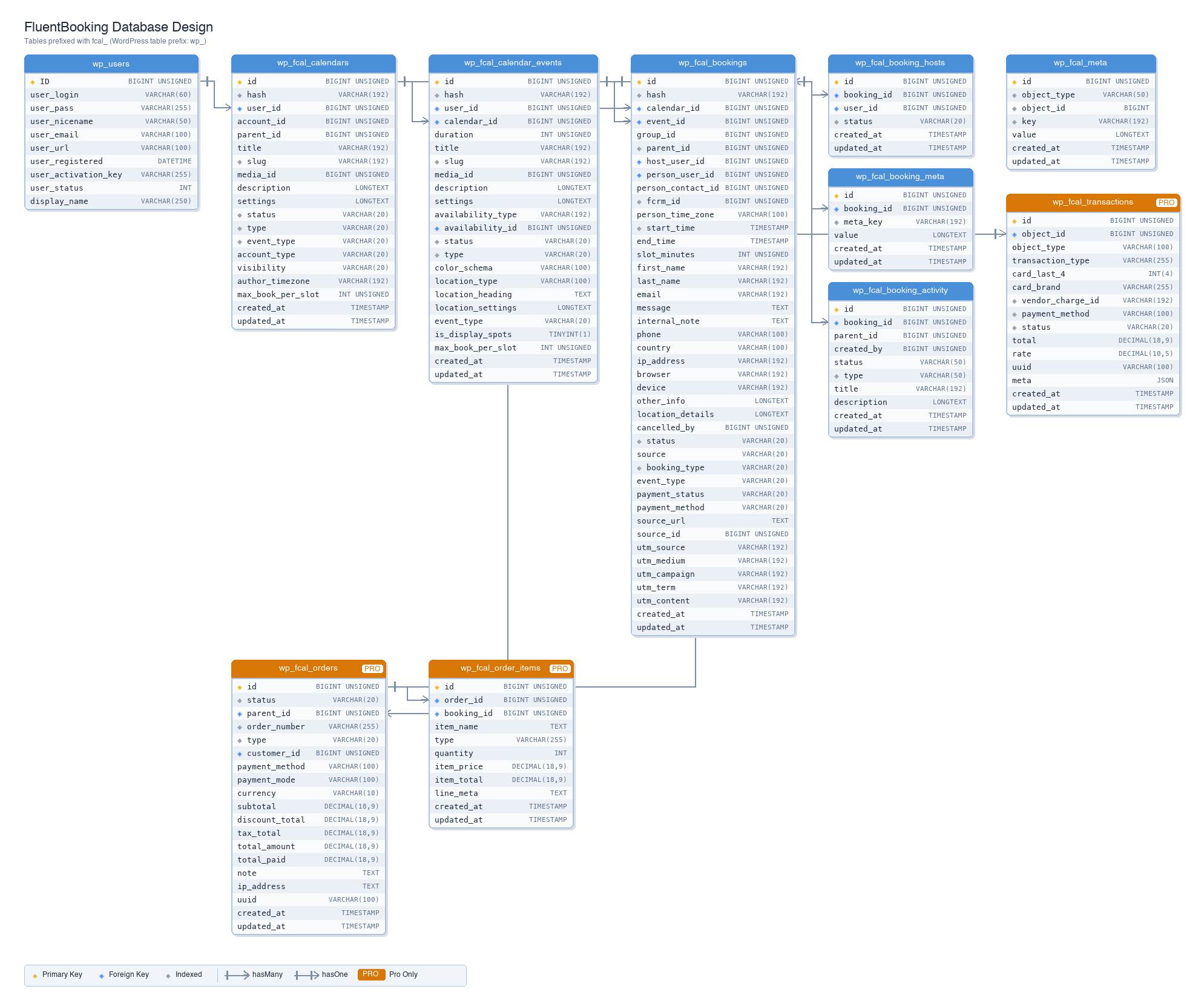

Entity Relationship Diagram

fcal_bookings (Booking)

Migration source: fluent-booking/database/Migrations/BookingMigrator.php

Column	Type	Nullable	Default	Description
id	BIGINT(20) UNSIGNED NOT NULL PRIMARY KEY	Yes	—	Primary key for the row.
hash	VARCHAR(192)	Yes	—	Random hash used as a public, non-enumerable booking identifier.
calendar_id	BIGINT(20) UNSIGNED	No	—	Foreign key to fcal_calendars.
event_id	BIGINT(20) UNSIGNED	No	—	Foreign key to fcal_calendar_events (the CalendarSlot model).
group_id	BIGINT(20) UNSIGNED	Yes	—	Shared group ID for bookings created together (group / collective).
fcrm_id	BIGINT(20) UNSIGNED	Yes	—	Optional FluentCRM contact ID for the booker.
parent_id	BIGINT(20) UNSIGNED	Yes	—	Parent row used for rescheduled or grouped bookings.
host_user_id	BIGINT(20) UNSIGNED	Yes	—	WordPress user ID of the host that owns the booking.
person_user_id	BIGINT(20) UNSIGNED	Yes	—	WordPress user ID of the attendee, if they were logged in.
person_contact_id	BIGINT(20) UNSIGNED	Yes	—	FluentCRM contact ID for the attendee, when available.
person_time_zone	VARCHAR(100)	Yes	—	IANA timezone of the attendee at the time of booking.
start_time	TIMESTAMP	Yes	—	Booking start time in UTC.
end_time	TIMESTAMP	Yes	—	Booking end time in UTC.
slot_minutes	INT(11) UNSIGNED	No	—	Length of the booked slot in minutes.
first_name	VARCHAR(192)	Yes	—	Attendee first name.
last_name	VARCHAR(192)	Yes	—	Attendee last name.
email	VARCHAR(192)	Yes	—	Attendee email address.
message	TEXT	Yes	—	Free-form message submitted by the attendee.
internal_note	TEXT	Yes	—	Internal note visible only to hosts and admins.
phone	VARCHAR(100)	Yes	—	Attendee phone number (when collected).
country	VARCHAR(100)	Yes	—	Attendee country code (when collected).
ip_address	VARCHAR(192)	Yes	—	IP address recorded when the booking was created.
browser	VARCHAR(192)	Yes	—	Browser detected when the booking was created.
device	VARCHAR(192)	Yes	—	Device detected when the booking was created.
other_info	LONGTEXT	Yes	—	Serialized custom-field answers and miscellaneous attendee data.
location_details	LONGTEXT	Yes	—	Serialized location data (Zoom link, address, custom location).
cancelled_by	BIGINT(20) UNSIGNED	Yes	—	User ID of the person who cancelled the booking, if any.
status	VARCHAR(20)	No	scheduled	Lifecycle status (scheduled, cancelled, completed, rejected, pending).
source	VARCHAR(20)	No	web	How the booking was created (web, api, etc.).
booking_type	VARCHAR(20)	No	scheduling	Internal booking subtype.
event_type	VARCHAR(20)	No	single	single or group event.
payment_status	VARCHAR(20)	Yes	—	Payment lifecycle status (pending, paid, refunded).
payment_method	VARCHAR(20)	Yes	—	Selected payment method slug.
source_url	TEXT	Yes	—	Referring URL where the booking originated.
source_id	BIGINT(20) UNSIGNED	Yes	—	Generic foreign key for the source record (form ID, etc.).
utm_source	VARCHAR(192)	Yes	``	Marketing UTM source value.
utm_medium	VARCHAR(192)	Yes	``	Marketing UTM medium value.
utm_campaign	VARCHAR(192)	Yes	``	Marketing UTM campaign value.
utm_term	VARCHAR(192)	Yes	``	Marketing UTM term value.
utm_content	VARCHAR(192)	Yes	``	Marketing UTM content value.
created_at	TIMESTAMP	Yes	—	Creation timestamp maintained by the ORM.
updated_at	TIMESTAMP	Yes	—	Update timestamp maintained by the ORM.

Indexes

• fcal_b_parent_id on (parent_id)
• fcal_b_hash on (hash)
• fcal_b_calendar_id on (calendar_id)
• fcal_b_fcrm_id on (fcrm_id)
• fcal_b_event_id on (event_id)
• fcal_b_booking_type on (booking_type)
• fcal_b_start_time on (start_time)
• fcal_b_group_id on (group_id)

fcal_calendars (Calendar)

Migration source: fluent-booking/database/Migrations/CalendarMigrator.php

Column	Type	Nullable	Default	Description
id	BIGINT(20) UNSIGNED NOT NULL PRIMARY KEY	Yes	—	Primary key for the row.
hash	VARCHAR(192)	Yes	—	Random hash used as a public, non-enumerable booking identifier.
user_id	BIGINT(20) UNSIGNED	No	—	WordPress user ID associated with the row.
account_id	BIGINT(20) UNSIGNED	Yes	—	Foreign key to a related record.
parent_id	BIGINT(20) UNSIGNED	Yes	—	Parent row used for rescheduled or grouped bookings.
title	VARCHAR(192)	No	—	Human-readable title stored for the record.
slug	VARCHAR(192)	No	—	Sanitized slug or public identifier.
media_id	BIGINT(20) UNSIGNED	Yes	—	Foreign key to a related record.
description	LONGTEXT	Yes	—	Description text stored for the record.
settings	LONGTEXT	Yes	—	Serialized settings payload.
status	VARCHAR(20)	No	active	Lifecycle status (scheduled, cancelled, completed, rejected, pending).
type	VARCHAR(20)	No	simple	Subtype discriminator.
event_type	VARCHAR(20)	No	scheduling	single or group event.
account_type	VARCHAR(20)	No	free	Account Type stored for this record.
visibility	VARCHAR(20)	No	public	Visibility stored for this record.
author_timezone	VARCHAR(192)	Yes	UTC	Author Timezone stored for this record.
max_book_per_slot	INT(10) UNSIGNED	No	1	Max Book Per Slot stored for this record.
created_at	TIMESTAMP	Yes	—	Creation timestamp maintained by the ORM.
updated_at	TIMESTAMP	Yes	—	Update timestamp maintained by the ORM.

Indexes

• fcal_c_user_id on (user_id)
• fcal_c_hash on (hash)
• fcal_c_status on (status)
• fcal_c_slug on (slug)
• fcal_c_event_type on (event_type)
• fcal_c_type on (type)

fcal_calendar_events (CalendarSlot)

Migration source: fluent-booking/database/Migrations/CalendarSlotsMigrator.php

Column	Type	Nullable	Default	Description
id	BIGINT(20) UNSIGNED NOT NULL PRIMARY KEY	Yes	—	Primary key for the row.
hash	VARCHAR(192)	Yes	—	Random hash used as a public, non-enumerable booking identifier.
user_id	BIGINT(20) UNSIGNED	No	—	WordPress user ID associated with the row.
calendar_id	BIGINT(20) UNSIGNED	No	—	Foreign key to fcal_calendars.
duration	INT(11) UNSIGNED	No	—	Event length in minutes.
title	VARCHAR(192)	No	—	Human-readable title stored for the record.
slug	VARCHAR(192)	No	—	Sanitized slug or public identifier.
media_id	BIGINT(20) UNSIGNED	Yes	—	Foreign key to a related record.
description	LONGTEXT	Yes	—	Description text stored for the record.
settings	LONGTEXT	Yes	—	Serialized settings payload.
availability_type	VARCHAR(192)	Yes	custom	Availability Type stored for this record.
availability_id	BIGINT(20) UNSIGNED	Yes	—	Foreign key to a related record.
status	VARCHAR(20)	No	active	Lifecycle status (scheduled, cancelled, completed, rejected, pending).
type	VARCHAR(20)	No	free	Subtype discriminator.
color_schema	VARCHAR(100)	No	default	Color Schema stored for this record.
location_type	VARCHAR(100)	No	``	Location Type stored for this record.
location_heading	TEXT	Yes	—	Location Heading stored for this record.
location_settings	LONGTEXT	Yes	—	Location Settings stored for this record.
event_type	VARCHAR(20)	No	single	single or group event.
is_display_spots	BOOLEAN	No	0	Is Display Spots stored for this record.
max_book_per_slot	INT(10) UNSIGNED	No	1	Max Book Per Slot stored for this record.
created_at	TIMESTAMP	Yes	—	Creation timestamp maintained by the ORM.
updated_at	TIMESTAMP	Yes	—	Update timestamp maintained by the ORM.

Indexes

• fcal_cs_user_id on (user_id)
• fcal_cs_hash on (hash)
• fcal_cs_status on (status)
• fcal_cs_slug on (slug)
• fcal_cs_type on (type)

fcal_meta (Availability)

Migration source: fluent-booking/database/Migrations/MetaMigrator.php

Column	Type	Nullable	Default	Description
id	BIGINT UNSIGNED NOT NULL PRIMARY KEY	Yes	—	Primary key for the row.
object_type	VARCHAR(50)	No	—	Polymorphic object type for the meta row.
object_id	BIGINT	Yes	—	Polymorphic object ID for the meta row.
key	VARCHAR(192)	No	—	Meta key.
value	LONGTEXT	Yes	—	Meta value (often JSON-encoded).
created_at	TIMESTAMP	Yes	—	Creation timestamp maintained by the ORM.
updated_at	TIMESTAMP	Yes	—	Update timestamp maintained by the ORM.

Indexes

• mt_idx on (object_type)
• mto_id_idx on (object_id)
• mto_id_key on (key)

fcal_booking_activity (BookingActivity)

Migration source: fluent-booking/database/Migrations/BookingActivityMigrator.php

Column	Type	Nullable	Default	Description
id	BIGINT UNSIGNED NOT NULL PRIMARY KEY	Yes	—	Primary key for the row.
booking_id	BIGINT UNSIGNED	No	—	Foreign key to a related record.
parent_id	BIGINT UNSIGNED	Yes	—	Parent row used for rescheduled or grouped bookings.
created_by	BIGINT UNSIGNED	Yes	—	Created By stored for this record.
status	VARCHAR(50)	Yes	open	Lifecycle status (scheduled, cancelled, completed, rejected, pending).
type	VARCHAR(50)	Yes	activity	Subtype discriminator.
title	VARCHAR(192)	Yes	—	Human-readable title stored for the record.
description	LONGTEXT	Yes	—	Description text stored for the record.
created_at	TIMESTAMP	Yes	—	Creation timestamp maintained by the ORM.
updated_at	TIMESTAMP	Yes	—	Update timestamp maintained by the ORM.

Indexes

• mt_idx on (booking_id)
• mto_type on (type)

fcal_booking_hosts (BookingHost)

Migration source: fluent-booking/database/Migrations/BookingHostMigrator.php

Column	Type	Nullable	Default	Description
id	BIGINT(20) UNSIGNED NOT NULL PRIMARY KEY	Yes	—	Primary key for the row.
booking_id	BIGINT(20) UNSIGNED	No	—	Foreign key to a related record.
user_id	BIGINT(20) UNSIGNED	No	—	WordPress user ID associated with the row.
status	VARCHAR(20)	No	confirmed	Lifecycle status (scheduled, cancelled, completed, rejected, pending).
created_at	TIMESTAMP	Yes	—	Creation timestamp maintained by the ORM.
updated_at	TIMESTAMP	Yes	—	Update timestamp maintained by the ORM.

Indexes

• fcal_bu_booking_id on (booking_id)
• fcal_bu_user_id on (user_id)
• fcal_bu_status on (status)

fcal_booking_meta (BookingMeta)

Migration source: fluent-booking/database/Migrations/BookingMetaMigrator.php

Column	Type	Nullable	Default	Description
id	BIGINT UNSIGNED NOT NULL PRIMARY KEY	Yes	—	Primary key for the row.
booking_id	BIGINT	Yes	—	Foreign key to a related record.
meta_key	VARCHAR(192)	No	—	Meta Key stored for this record.
value	LONGTEXT	Yes	—	Meta value (often JSON-encoded).
created_at	TIMESTAMP	Yes	—	Creation timestamp maintained by the ORM.
updated_at	TIMESTAMP	Yes	—	Update timestamp maintained by the ORM.

Indexes

• bmto_id_idx on (booking_id)
• bmto_id_key on (meta_key)

fcal_meta (Meta)

Migration source: fluent-booking/database/Migrations/MetaMigrator.php

Column	Type	Nullable	Default	Description
id	BIGINT UNSIGNED NOT NULL PRIMARY KEY	Yes	—	Primary key for the row.
object_type	VARCHAR(50)	No	—	Polymorphic object type for the meta row.
object_id	BIGINT	Yes	—	Polymorphic object ID for the meta row.
key	VARCHAR(192)	No	—	Meta key.
value	LONGTEXT	Yes	—	Meta value (often JSON-encoded).
created_at	TIMESTAMP	Yes	—	Creation timestamp maintained by the ORM.
updated_at	TIMESTAMP	Yes	—	Update timestamp maintained by the ORM.

Indexes

• mt_idx on (object_type)
• mto_id_idx on (object_id)
• mto_id_key on (key)

fcal_orders (Order)

Migration source: fluent-booking-pro/database/Migrations/BookingOrdersMigrator.php

Column	Type	Nullable	Default	Description
id	BIGINT UNSIGNED NOT NULL PRIMARY KEY	Yes	—	Primary key for the row.
status	VARCHAR(20)	No	draft	Lifecycle status (scheduled, cancelled, completed, rejected, pending).
parent_id	BIGINT UNSIGNED	No	—	Parent row used for rescheduled or grouped bookings.
order_number	VARCHAR(255)	No	``	Order Number stored for this record.
type	VARCHAR(20)	No	sale	Subtype discriminator.
customer_id	BIGINT UNSIGNED	No	—	Foreign key to a related record.
payment_method	VARCHAR(100)	No	—	Selected payment method slug.
payment_mode	VARCHAR(100)	No	—	Payment Mode stored for this record.
payment_method_type	VARCHAR(100)	No	—	Payment Method Type stored for this record.
payment_method_title	VARCHAR(100)	No	—	Payment Method Title stored for this record.
currency	VARCHAR(10)	No	—	Currency stored for this record.
subtotal	DECIMAL(18,9)	No	0.000000000	Subtotal stored for this record.
discount_tax	DECIMAL(18,9)	No	0.000000000	Discount Tax stored for this record.
discount_total	DECIMAL(18,9)	No	0.000000000	Discount Total stored for this record.
shipping_tax	DECIMAL(18,9)	No	0.000000000	Shipping Tax stored for this record.
shipping_total	DECIMAL(18,9)	No	0.000000000	Shipping Total stored for this record.
tax_total	DECIMAL(18,9)	No	0.000000000	Tax Total stored for this record.
total_amount	DECIMAL(18,9)	No	0.000000000	Total Amount stored for this record.
total_paid	DECIMAL(18,9)	No	0.000000000	Total Paid stored for this record.
rate	DECIMAL(18,9)	No	1.000000000	Rate stored for this record.
note	TEXT	No	—	Note stored for this record.
ip_address	TEXT	No	—	IP address recorded when the booking was created.
completed_at	DATETIME	Yes	—	Timestamp column.
refunded_at	DATETIME	Yes	—	Timestamp column.
uuid	VARCHAR(100)	No	—	Uuid stored for this record.
created_at	TIMESTAMP	Yes	—	Creation timestamp maintained by the ORM.
updated_at	TIMESTAMP	Yes	—	Update timestamp maintained by the ORM.

Indexes

• order_number on (order_number(191)
• status_type on (type)
• customer_id on (customer_id)

fcal_order_items (OrderItems)

Migration source: fluent-booking-pro/database/Migrations/OrdersItemsMigrator.php

Column	Type	Nullable	Default	Description
id	BIGINT(20) UNSIGNED NOT NULL PRIMARY KEY	Yes	—	Primary key for the row.
order_id	BIGINT UNSIGNED	No	0	Foreign key to a related record.
booking_id	BIGINT UNSIGNED	No	0	Foreign key to a related record.
item_name	TEXT	No	—	Item Name stored for this record.
type	VARCHAR(255)	Yes	—	Subtype discriminator.
quantity	INT	No	0	Quantity stored for this record.
item_price	DECIMAL(18,9)	No	0.000000000	Item Price stored for this record.
item_total	DECIMAL(18,9)	No	0.000000000	Item Total stored for this record.
rate	DECIMAL(18,9)	No	1.000000000	Rate stored for this record.
line_meta	TEXT	Yes	—	Line Meta stored for this record.
created_at	TIMESTAMP	Yes	—	Creation timestamp maintained by the ORM.
updated_at	TIMESTAMP	Yes	—	Update timestamp maintained by the ORM.

fcal_transactions (Transactions)

Migration source: fluent-booking-pro/database/Migrations/BookingTransactionsMigrator.php

Column	Type	Nullable	Default	Description
id	BIGINT(20) UNSIGNED NOT NULL PRIMARY KEY	Yes	—	Primary key for the row.
object_id	BIGINT UNSIGNED	No	0	Polymorphic object ID for the meta row.
object_type	VARCHAR(100)	No	``	Polymorphic object type for the meta row.
transaction_type	varchar(255)	Yes	one_time	Transaction Type stored for this record.
subscription_id	int(11)	Yes	—	Foreign key to a related record.
card_last_4	int(4)	Yes	—	Card Last 4 stored for this record.
card_brand	varchar(255)	Yes	—	Card Brand stored for this record.
vendor_charge_id	VARCHAR(192)	No	``	Foreign key to a related record.
payment_method	VARCHAR(100)	No	``	Selected payment method slug.
payment_method_type	VARCHAR(100)	No	``	Payment Method Type stored for this record.
status	VARCHAR(20)	No	``	Lifecycle status (scheduled, cancelled, completed, rejected, pending).
total	DECIMAL(18,9)	No	0.000000000	Total stored for this record.
rate	DECIMAL(10,5)	No	1.00000	Rate stored for this record.
uuid	VARCHAR(100)	No	``	Uuid stored for this record.
meta	json	Yes	—	Serialized meta payload.
created_at	TIMESTAMP	Yes	—	Creation timestamp maintained by the ORM.
updated_at	TIMESTAMP	Yes	—	Update timestamp maintained by the ORM.

Indexes

• ven_charge_id on (vendor_charge_id(64)
• payment_method_idx on (payment_method)
• status_idx on (status)
• object_id_idx on (object_id)
